01
Complex Multi-Face Components
Multi-face geometry · bores · pockets · mounting interfaces
XIAMEN · CHINA
Precision CNC Manufacturing
for Complex Components
3-Axis · 4-Axis · 5-Axis CNC Machining · From Prototype to Production

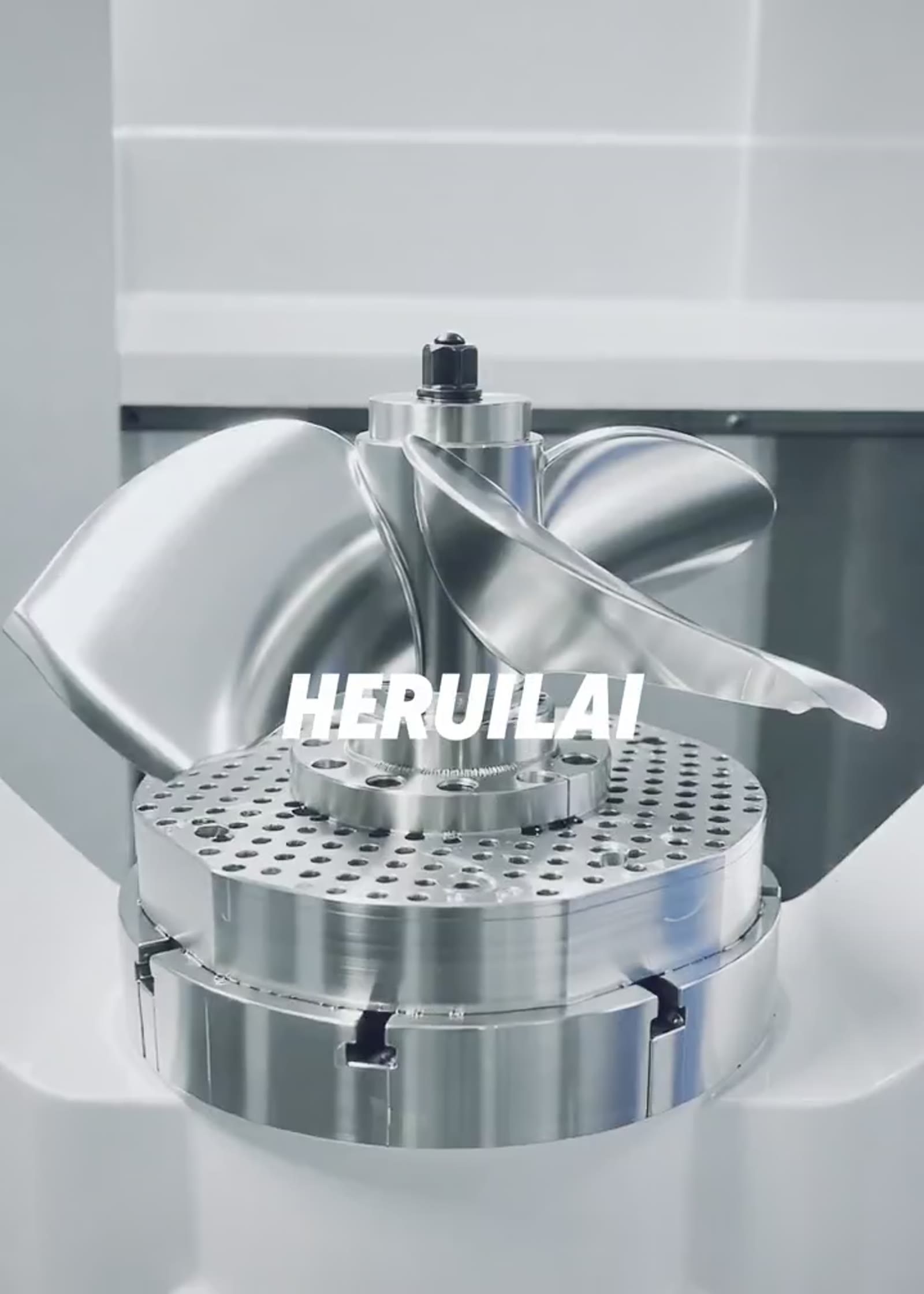

PRECISION IN MOTION5-AXIS CNC
DRAWING-BASED MANUFACTURINGComplex geometry.
Controlled precision.
01 / 01
Controlled precision.

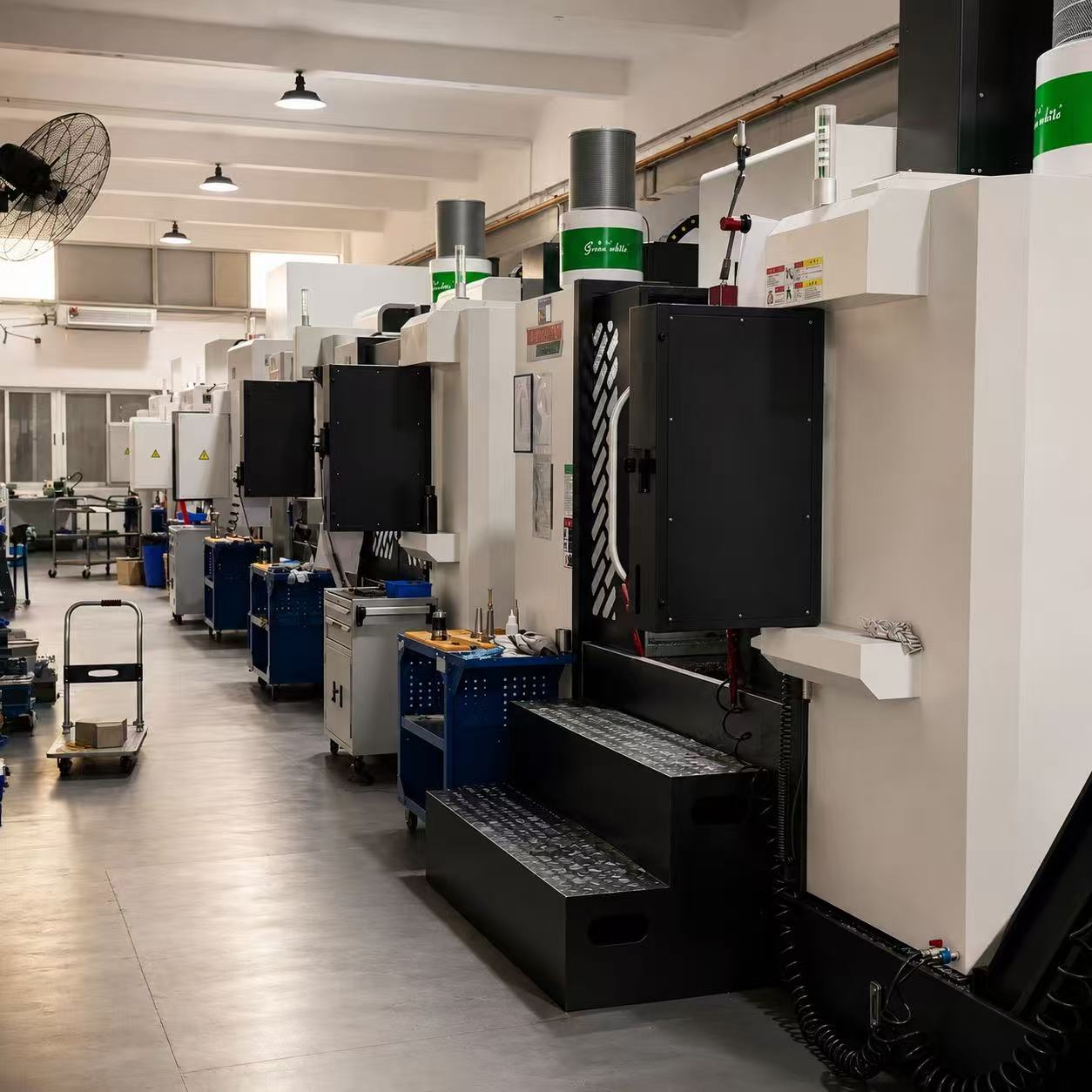

1,000 m²Modern Factory
ISO 9001Quality System
99.8%Yield Rate
500 kgMax. Workpiece
Ø800 mmMax. Rotary Diameter
HERUILAI / PRECISION MANUFACTURING
We manufacture drawing-based precision components across complex 5-axis, industrial and rotating applications — with pump impellers as one specialized capability, not the limit of our scope.
01 / SELECTED COMPONENTS
More than one kind of precision.

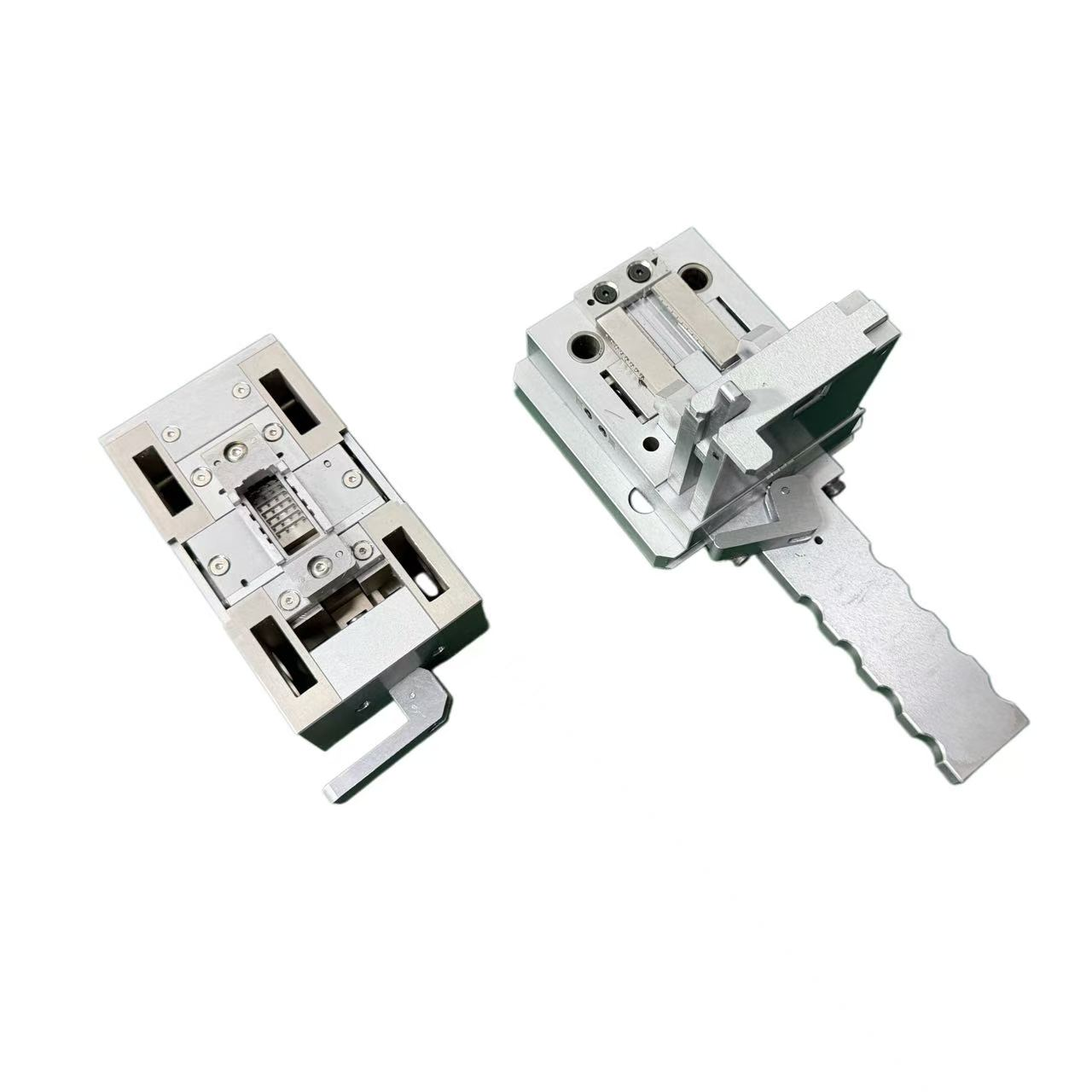

A broader view of our drawing-based machining capability — from shafts and housings to multi-face parts, rotating components and assemblies.
Capability scope shown for reference. Final manufacturability and process route are confirmed from customer drawings and specifications.
02 / COMPONENT RANGE
Built to your drawing.
Custom CNC-machined components manufactured to customer drawings and specifications.

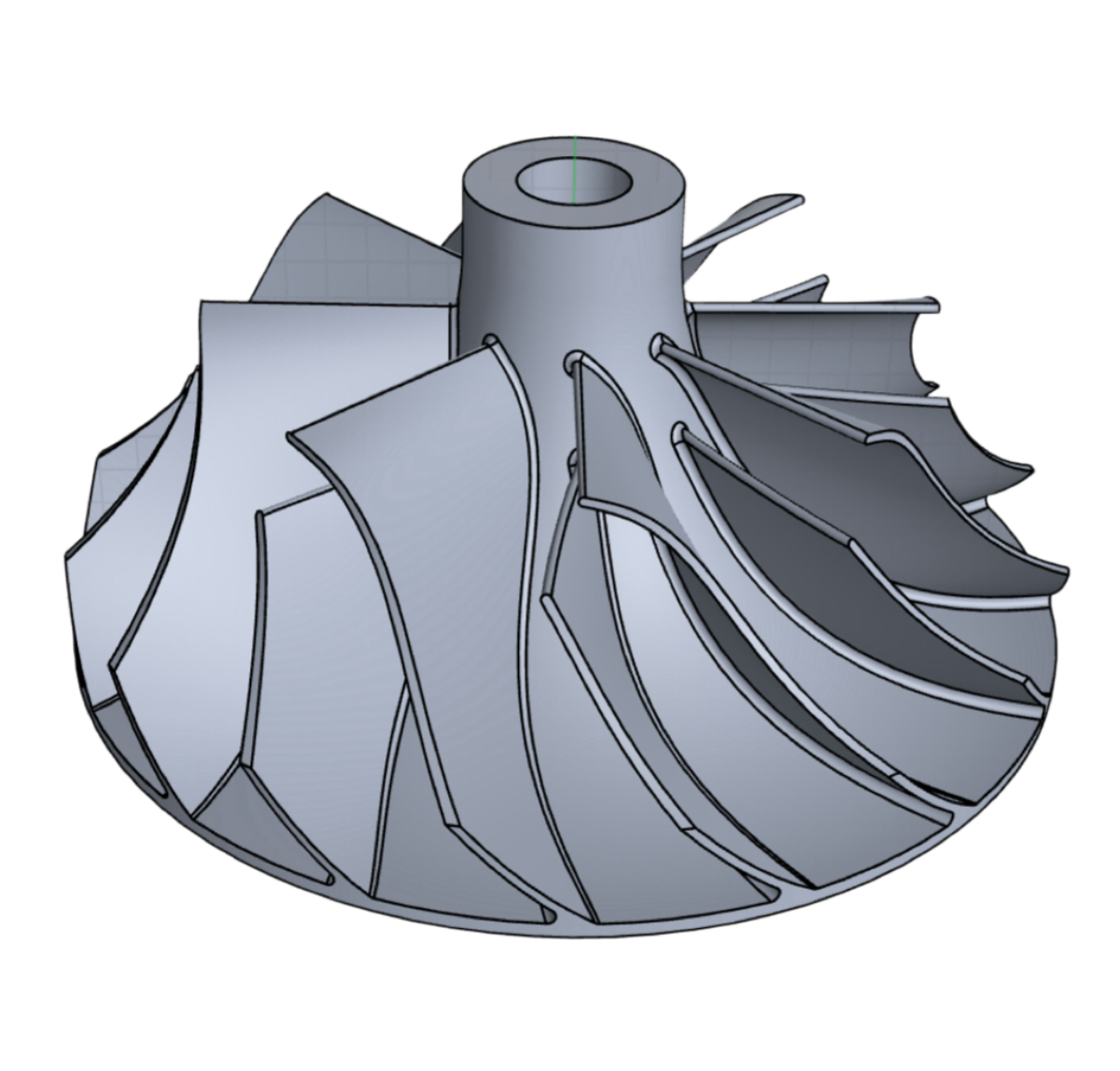

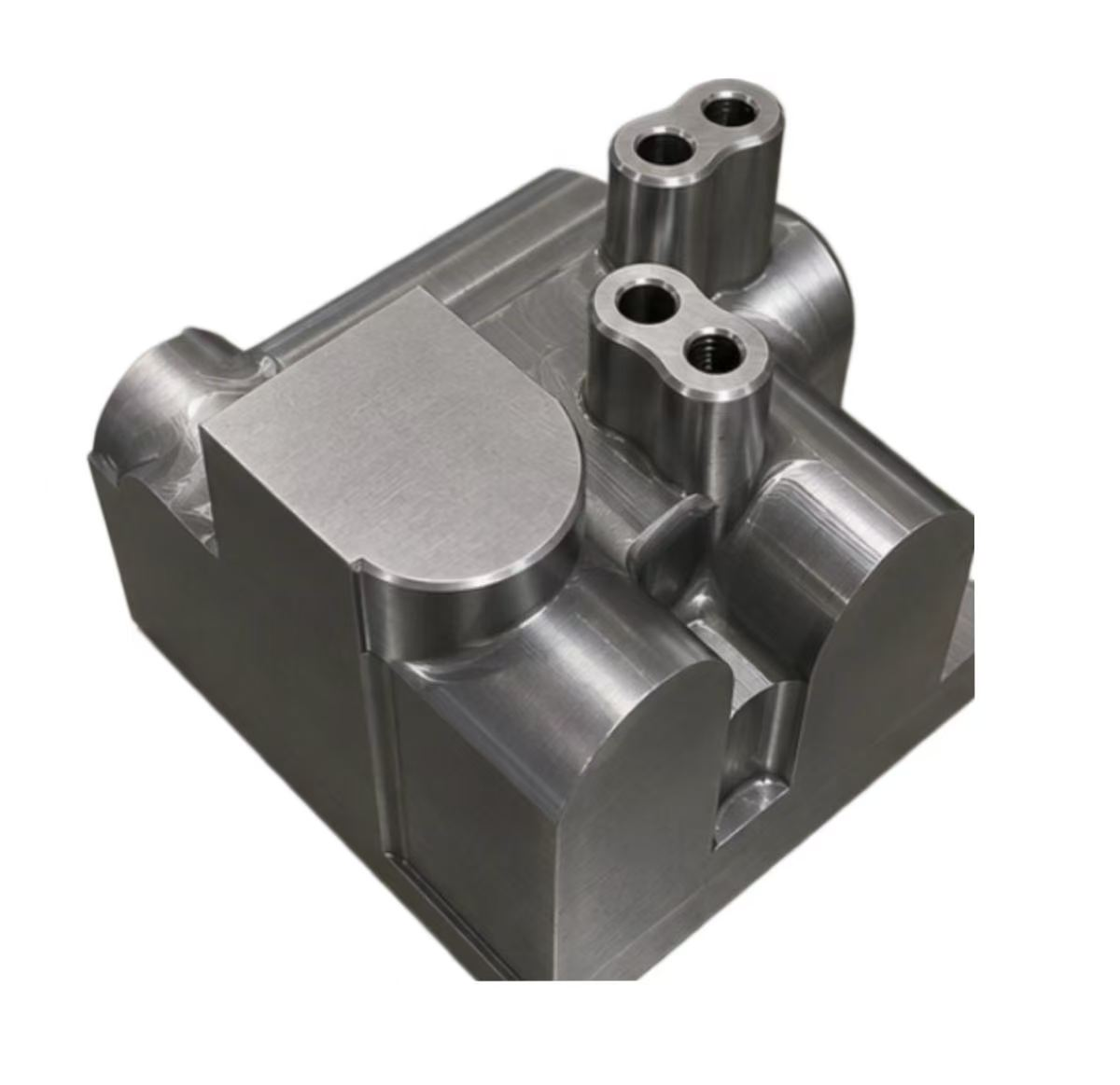

Complex 5-Axis Components
Multi-face geometry, precision interfaces and controlled feature relationships.

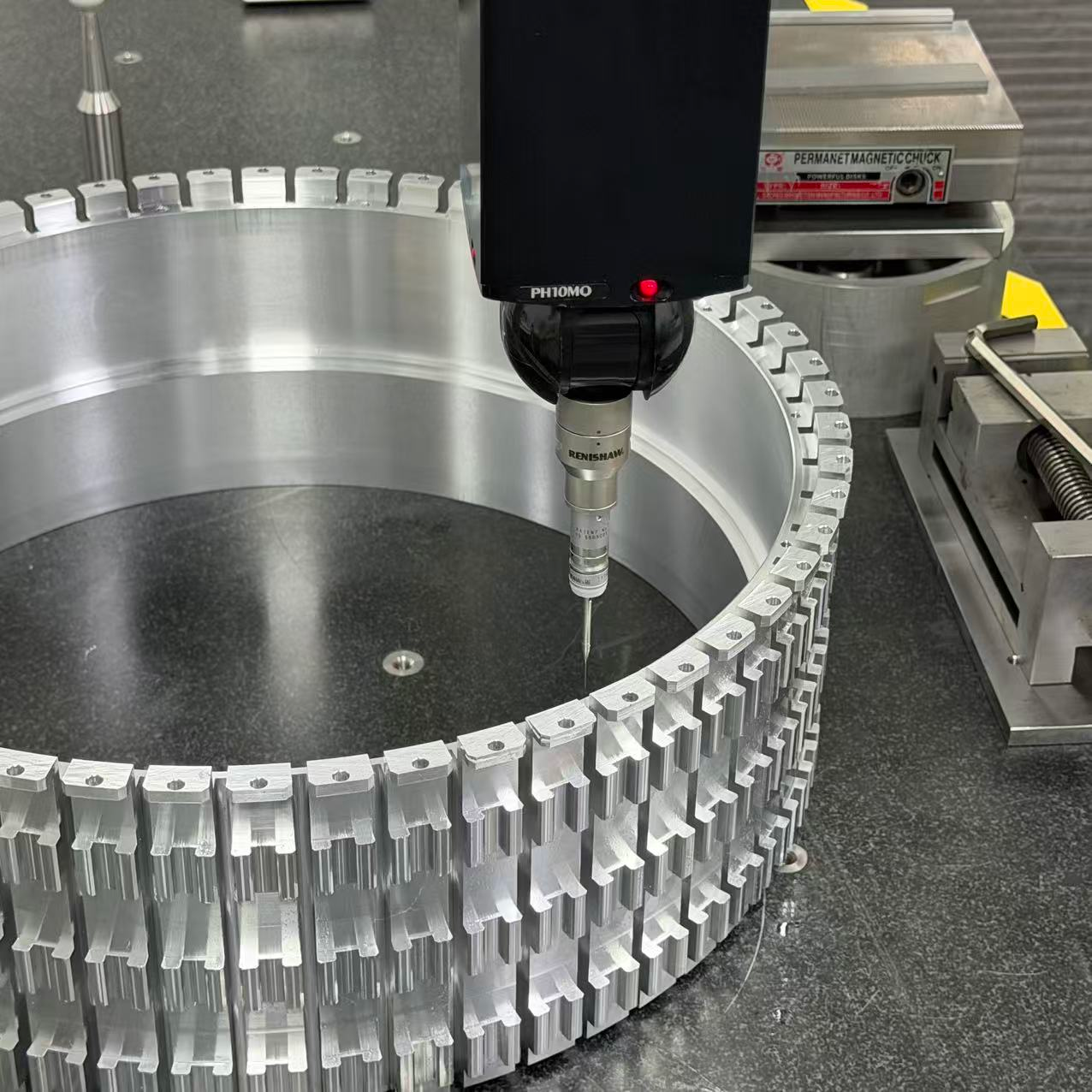

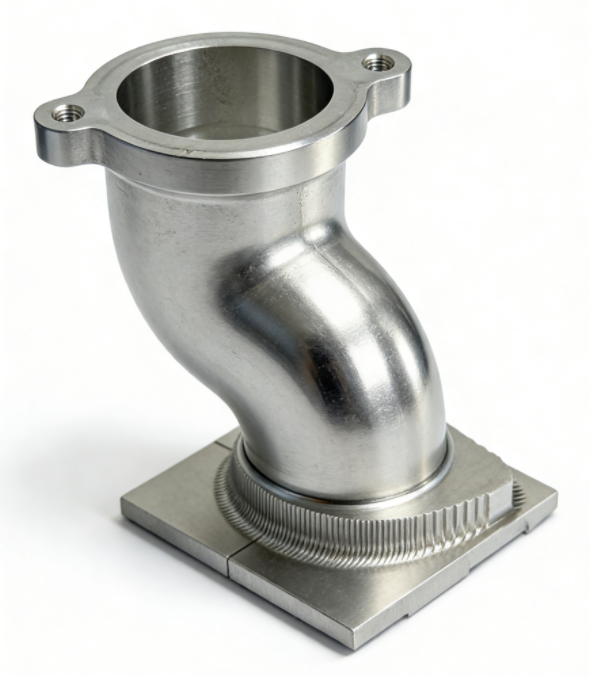

Precision Industrial Components
Large-diameter, multi-feature and drawing-based CNC machining.

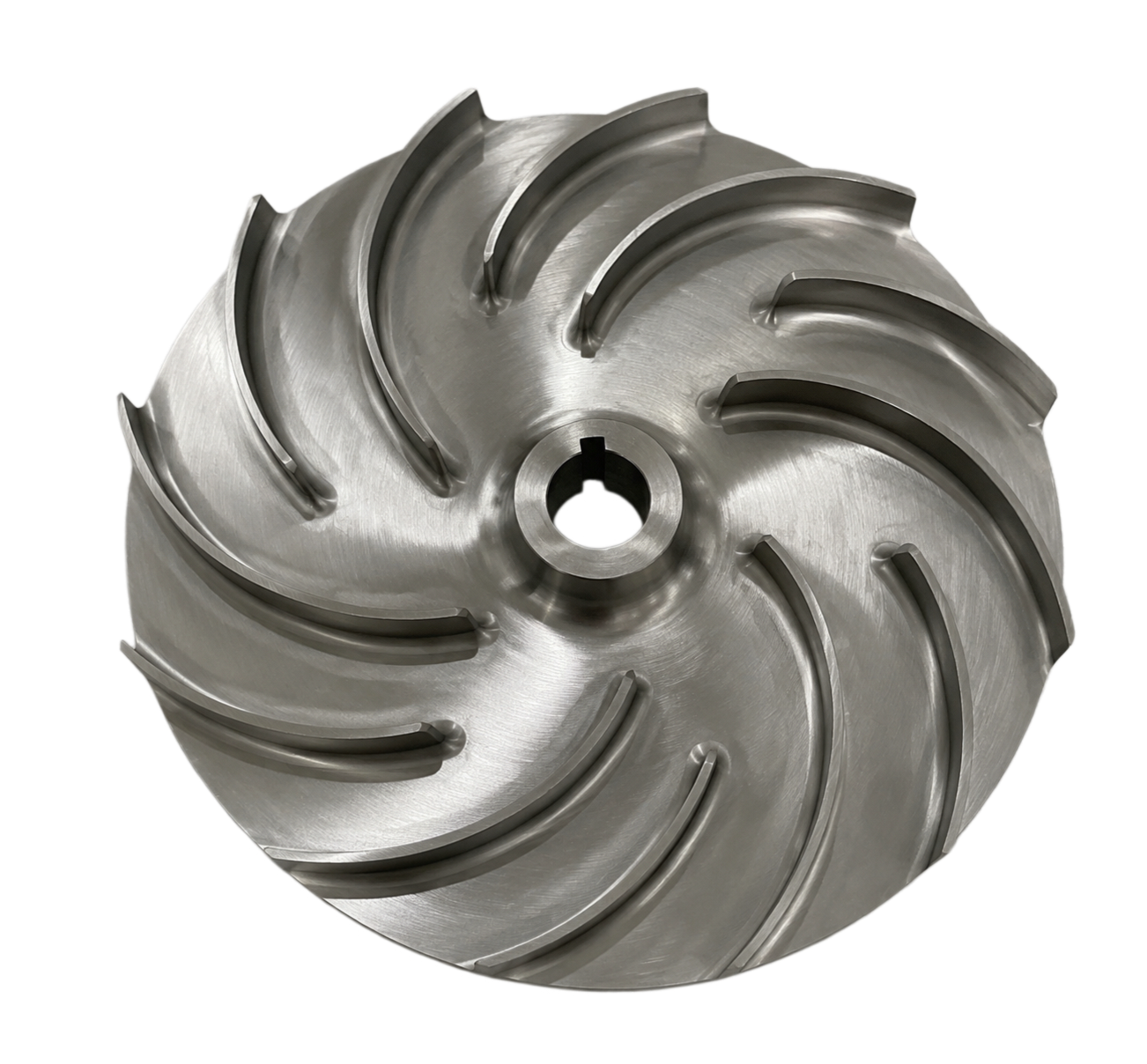

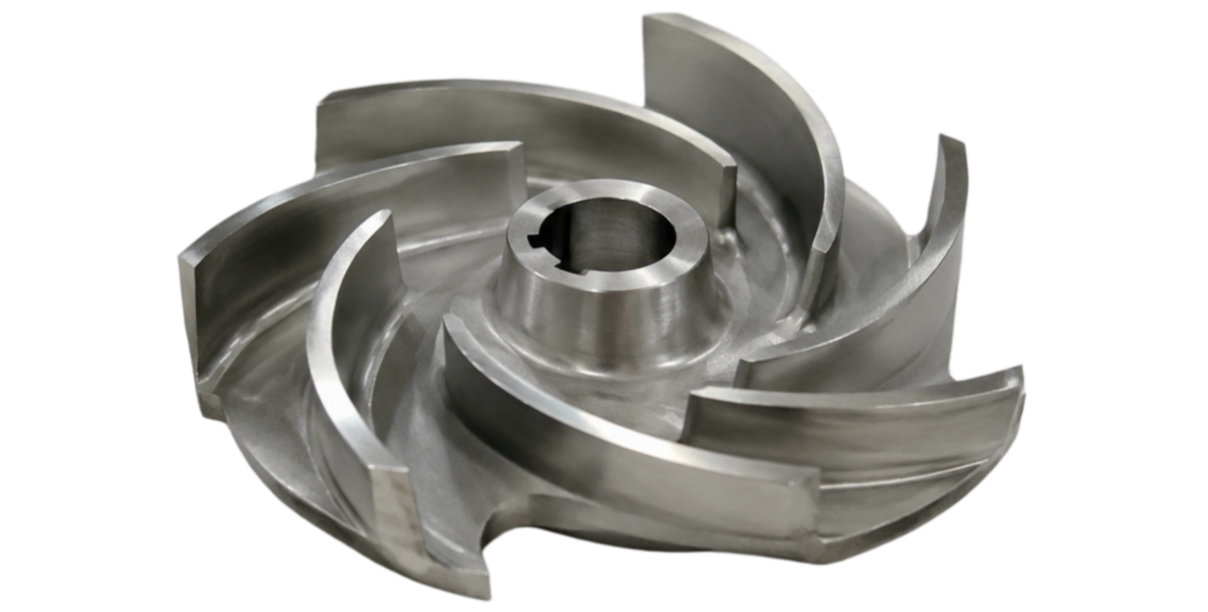

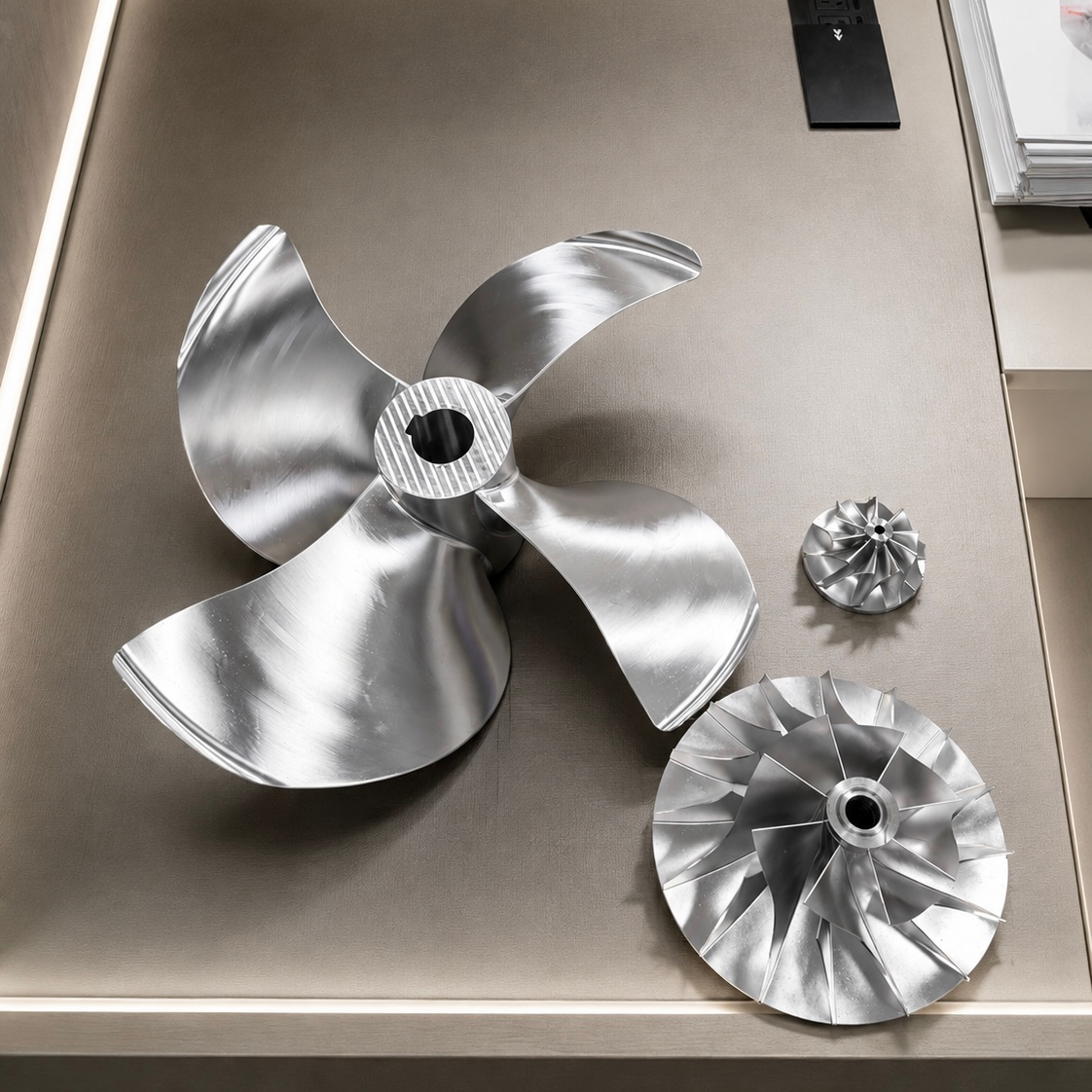

Pump & Rotating Components

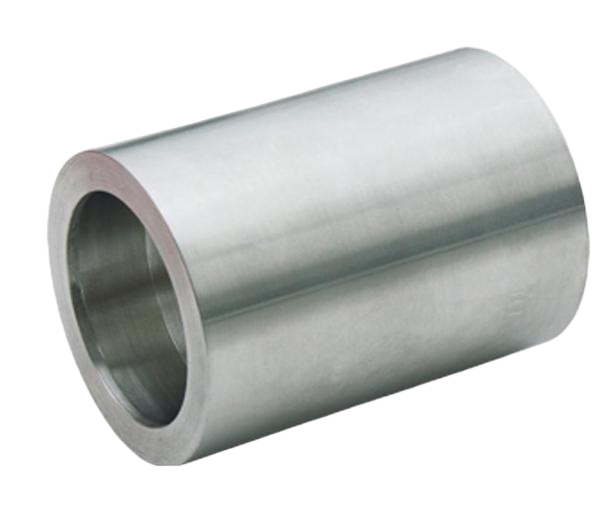

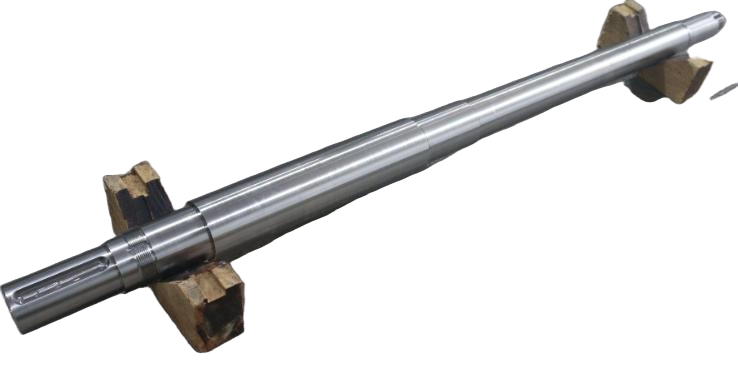

Impellers, shafts, sleeves, wear parts and related precision components.

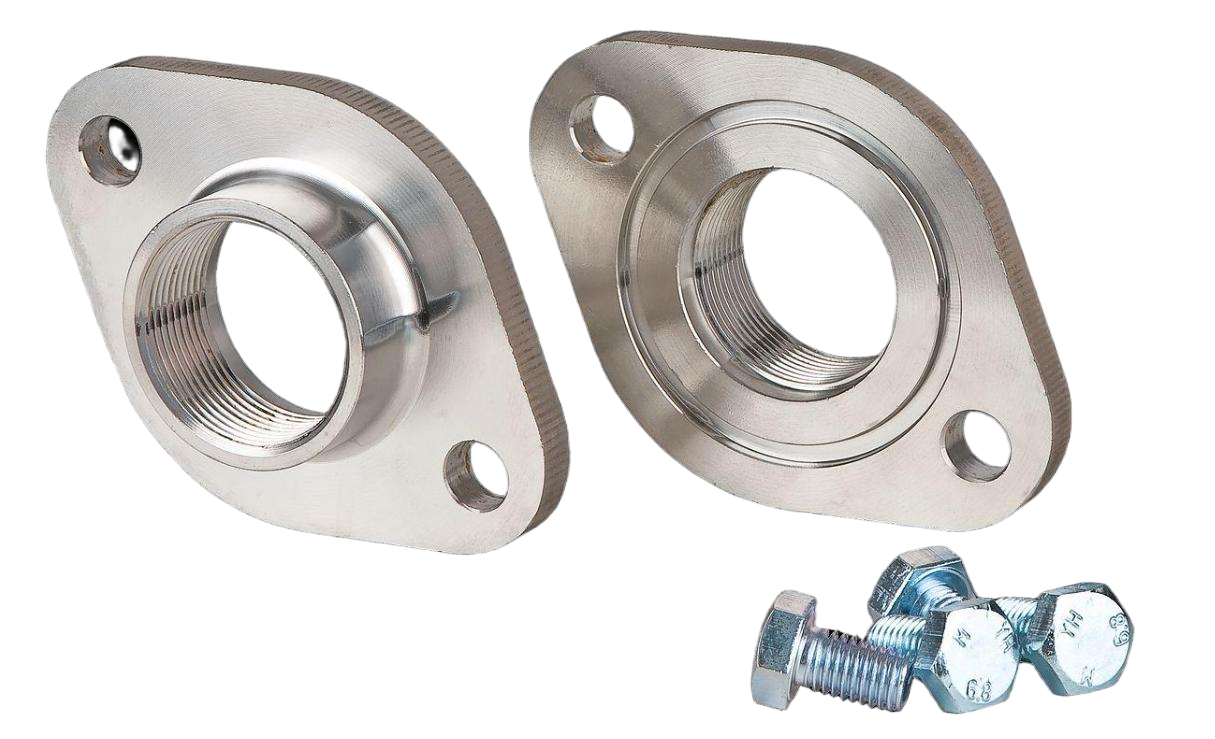

Pump ShaftsShaft SleevesWear RingsGlandsBushingsCouplingsFlanges & AdaptersRobotic Joint Components
Capability scope — not a claim that every configuration has been previously produced.03 / CAPABILITIES
Machining capability,
without the noise.
5-AXIS CNC580 × 700 mm±0.01 mm · 500 kg · Ø800 mm
JDVT600T600 × 400 mm±0.01 mm
CNC MACHINING1100 × 600 mm±0.01 mm
CNC MACHINING800 × 500 mm±0.01 mm
Solid billet → 5-axis machiningCast blank → 3-axis finishingCast blank → 5-axis finishing
04 / QUALITY
Quality you can verify.
Dimensional verification is integrated into the manufacturing process — from critical features to final inspection.

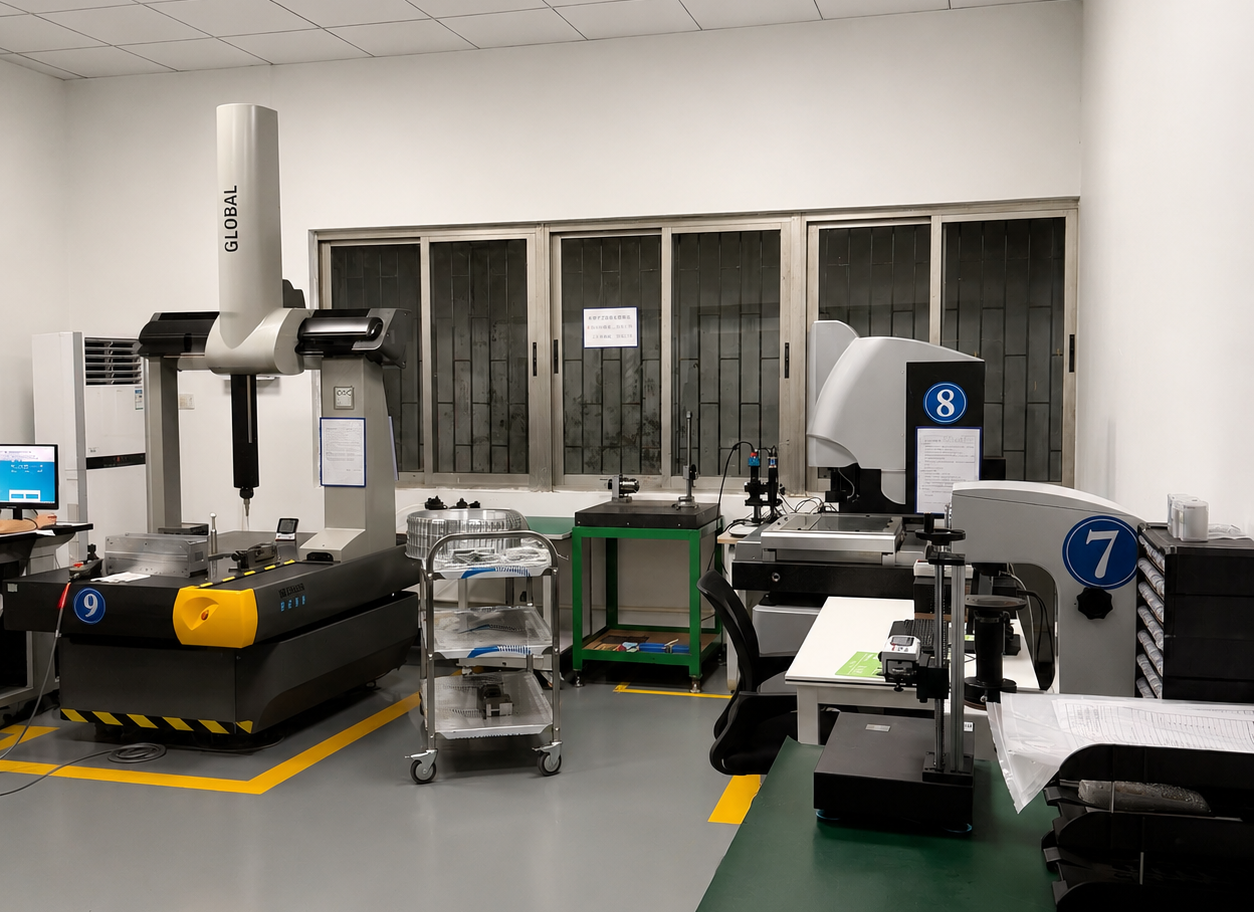

Hexagon CMM2.5 μm metrology capability for dimensional verification.
CMM / 2.5DApplied as appropriate for final inspection.
HR150A · MINCE-200Hardness and surface roughness inspection.
CERTIFICATION
ISO 9001
Certified quality system supporting controlled production and inspection.
05 / WORKFLOW
From drawing to delivery.
- 01Drawing Review
- 02DFM & Quotation
- 03Sample Production
- 04Sample Approval
- 05Mass Production
- 06Inspection & Delivery
START A PROJECT
Send us your drawing.
Tell us what you need. We will review geometry, material, tolerance, quantity and process route before quotation.
Xiamen Heruilai Precision Technology Co., Ltd.Room 102, No. 11-2, Shuangfu Road,
Tong’an District, Xiamen, Fujian Province, China.
